Great Lakes Lake Effect Cabinets- Up to 10kW Cooling Efficiency
American Data Supply is a Tier One direct distributor of Great Lakes Case and Cabinets and offers the complete line of Great Lakes Data Cabinets, Great Lakes Water Cooled Data Cabinets,Closed Loop Water Cooled Enclosures and their entire line of 2 post racks, 4 post racks and data center racking systems. Most Great Lakes standard data cabinets and racks ship same or next day after receipt of order. The Great Lakes Chilled Water Cooled Systems are not same day or next day as they have to be custom -built based on your engineering requirements. Please choose the chilled or cooling system you need below. Our representatives will work with you on putting together complimentary engineering services to customize your data center cooling needs. Please call us at (866) 342-3721 or email us for further information.
Welcome to Data Center Power and Data Cabinet Cooling for the Future
Call us at (866) 342-3721 For Configuration- Engineering or Pricing
 |
|||||
American Data Supply is now a Tier 1 Distributor of Great Lakes Cabinets! Great Lakes SPECIALIZES IN same OR next DAY SHIPPING ON ALL DATA CABINETS AND RACKS!- More details |
|||||
8 kW Cooling options make the most of the core elements included in each Great Lakes ES Series Enclosure
A Medium (8 KW) cooling solution can also be easily implemented
The Ultimate Cooling Enclosure - No Refrigerants, Liquids, or Modifications Required-
Thermal patented technology makes the Great Lakes Lake Effect Enclosure your solution for all your networking needs. This Enclosure eliminates the use of refrigerants or coolants in your data center environment. The use of vanaxial fans originally designed for the aerospace industry allows this enclosure to create a usable air environment which can satisfy up to a 10KW of computer load. A consistent 65 degree temperature in the front plenum chamber is maintained from top to bottom, there by protecting your equipment from hardware failure due to overheating. It contains a 44 RMU rack space, and all the same features as our Great Lakes Enhanced Series Enclosures.
|
|
What's special about these thermal enclosures?
Enhancing Features :
|
In order to increase the cooling effect within the enclosure, the goal remains to direct conditioned air and to restrict the possibility of hot air recirculation. At the same time, any proposed solution must also allow for any desired cable management in the front of an enclosure.
Passive
The use of the Great Lakes Brush Grommet Kit, designed to mount to the proprietary Flexible Mounting Profile* found in each Great Lakes rail, helps to prevent bypass air flow and to keep conditioned air in the front of the enclosure. While brush grommet prevents hot air recirculation and prevents conditioned air from passing by the equipment mounted within the enclosure, it still allows for any desired cable management within the enclosure.
Active
A Medium Cooling solution could also include optional fans in the front mesh door in order to accelerate the intake of conditioned air into the front of the cabinet, as well as its movement through the equipment mounted within. The employment of split fan rear doors can assist in the removal of hot air from the enclosure. This solution can be further enhanced by the installation of an optional fixed/adjustable ducted chimney to channel the natural upward movement of hot air, removing it from the enclosure through an upper rear opening to which the chimney may be attached. Heat removal may be further activated by the addition of an exhaust fan, to be mounted within the chimney.
This Medium Cooling Solution is targeted at the delivery of 8 kW through the use of some simple enclosure options and accessories. Actual cooling shall be based on the options, accessories and techniques employed, as well as the conditions and efficiency of the computer room air conditioning system employed in the data center.
*The Flexible Mounting Profile (FMP) is a series of holes along each rail, installed at one-RMU increments, and located outside the standard pattern for all EIA rail-mounted equipment. From copper bus bars to cable rings, cable managment posts and other accessories, the design and manufacture of Great Lakes rails is so strong that virtually nothing mounted to the FMP will take away from the dimensional stability of the rail itself.
The rails in Great Lakes’ ES series enclosure are #12 gauge steel, formed three times for
added strength. An ES enclosure can support more than 2,000 pounds of mounted equipment.
| Great Lakes PT# | Great Lakes Lake Effect Product Description |
Dims | Price EA |
Custom Enclosure |
|||
| GL-8401LE-3048 | Lake Effect Base Unit with two (2) pair of powder coated 19” universal M6 rails and M6 hardware, shipping pallet, and two (2) sets of power strip brackets | 84"H x 30"W x 48"D | $1,914.87 |
| GL-8402-LE | Plexi door with lower bottom mesh- front | for 84"H x 29"W Base Unit | $573.48 |
| GL-8402E-M29 | Mesh steel door with locking swing handle - rear | for 84"H x 29"W Base Unit | $317.02 |
| GL-8410-36ELS | Pair Locking Lift-off Solid Side Panels |
84"H x 36"D | $264.71 |
| GL-TPE-29P | Perforated Top Panel w/Two 4" Horseshoe Knock-outs | - | $63.41 |
| GL-LE-CM | Vertical cable management tray (2) | - | $180.38 |
| GL-LE-FB | Fan Box Kit, Patented Great lakes patented technology achieves a positive air pressure environment, created by a 7 RMU fan box, 3 sided adjustable depth plenum both sealed to the front door. The servers/filler panels form the rear surface which yields a consistent temperature curtain at the front of the cabinet providing an environment that is the right temperature, the right air quality, delivering to the face of every computer in the cabinet. |
- | $4,528.44 |
| GL-LE-PL | Plenum kit, Patented | - | $789.48 |
| Enclosure Kits (includes all the items above) | |||
| GL-GL840LE-3048 | Lake Effect enclosure kit complete floor mount | 84"H x 30"W x 48"D | $8,085.54 |
| GL-GL840LE-3048-LG | Lake Effect enclosure kit complete with leveling glides | 84"H x 30"W x 48"D | $7,982.00 |
| GL-GL840LE-3048-LGC | Lake Effect enclosure kit complete with casters and levelers | 84"H x 30"W x 48"D | $8,068.00 |
| Cabinet without Fan Box Kit and Plenum Kit | |||
| GL-GL840LE-3048-MC | Lake Effect enclosure mesh contour front and rear doors without Fan Box and Plenum Kit | 84"H x 30"W x 48"D | $4,210.42 |
| GL-GL840LE-3048-MC-LG | Lake Effect enclosure with mesh contour front and rear doors without Fan Box and Plenum Kit (includes leveling glides) | 84"H x 30"W x 48"D | $4,276.82 |
| GL-GL840LE-MC-LGC | Lake Effect enclosure with mesh contour front and rear doors without Fan Box and Plenum Kit (includes leveling glides and casters) | 84"H x 30"W x 48"D | $4,377.11 |
| GE-LIFT | *** If your delivery will require a LIFT GATE you must select this option. *** American Data Supply ,IInc reserves the right to bill for those actual charges incurred from the shipping companies for services not identified by the customer. These 'additional services/charges' include the following: A lift gate, inside delivery & storage. |
$125.00 | |
| PART # Click below to view item |
DESCRIPTION | SIZE | PRICE |
| Accessories | |||
| DOORS | |||
| GL-8404E-M29 | Bevel mesh door (accepts 7217LE3 door fans) | for 84"H x 29"W Base Unit | $470.88 |
| GL-8404E-MC24 | Mesh Contour Steel Door | - | $370.78 |
| GL-8402E-29SM | Split mesh door | for 84"H x 29"W Base Unit | $420.04 |
| GL-8404E-29 | Plexiglas door with locking swing handle | for 84"H x 29"W Base Unit | $206.07 |
| SIDE PANELS | |||
| GL-8411-36ELL | Pair locking lift-off louvered side panels | for 84"H x 36"D Base Unit | $309.09 |
| REMOVABLE TOP & BOTTOM PANELS | |||
| GL-TPES-S | Solid Top Panel for ES & LE Racks | for 29"W Base Unit | $53.89 |
| GL-TPES-P | Perforated Top Panel for ES & LE Racks | for 29"W Base Unit | $55.48 |
| GL-TPES-F | Top Panel with Fan Assembly for ES & LE Racks | for 29"W Base Unit | $261.53 |
| GL-TPES-F10 | 550 CFM 10" Fan Top Panel for ES & LE Racks | for 29"W Base Unit | $277.40 |
| GL-TPES-2F10 | 2 x 550 CFM 10" Fan Top Panel for ES & LE Racks | for 29"W Base Unit | $473.94 |
| CABLE MANAGEMENT | |||
| GL-LE-CM | Vertical cable management tray (rear) | - | $180.38 |
| GL-HCM-W29ES | Waterfall cable management | - | $19.39 |
| GL-VLB-8436 | Vertical lacing bar kit (includes 1 vertical lacing bar, 2 horizontal lacing bars and 6 CM-01 cinch straps) | for 84”H x 36”D enclosures | $96.68 |
| FILLER/BLANKING PANELS | |||
| GL-875-FP19 | 8.75”H, 19” Rack Mounting | 5 RMU | $19.82 |
| GL-1400-FP19 | 9 14.00”H, 19” Rack Mounting | 8 RMU | $24.78 |
| POWER OUTLET STRIPS, COPPER BUS BARS & COOLING EQUIPMENT | |||
| GL-7215 |
49" 16 Position Power Strip w/ Circuit Breaker, 5-15P plug, 5-15R Receptacle (16 outlets) | 49" Length | $101.45 |
| GL-7215-S |
6 position power strip with circuit breaker (19" rack mounted) | 49" Length | $150.58 |
| GL-7215-20AR |
49" 16 Position Power Strip w/ Circuit Breaker, 5-20P plug, 5-20R Receptacle (16 outlets) | 49" Length | $166.43 |
| GL-7215-30A |
16 position power strip w/circuit breaker & 5-20P plug | 48" Length | $315.43 |
| DOOR HANDLES | |||
| GL-CH-01 | Four digit combination handle | - | $52.88 |
| GL-CH-02 | Three digit combination handle | - | $77.11 |
| GL-CH-03 | Pad lock handle with key | - | $83.72 |
| GL-CH-04 | Pad lock handle | - | $77.11 |
| COOLING DEVICES | |||
| GL-7217FT | Fan tray with three 75 CFM fans | - | $233.17 |
| GL-7217FT-3 | Front & rear mount, adjustable fan tray w/ three 75 CFM fans | - | $324.94 |
| GL-7217FT-6 | Front & rear mount, adjustable fan tray w/ six 75 CFM fans | - | $388.35 |
| GL-7217FT-9 | Front & rear mount, adjustable fan tray w/ nine 75 CFM fans | - | $515.16 |
| GL-7217-LE1 | Fan Assembly w/ fan adaptation plate (installs in rear top) | - | $258.12 |
| GL-FTBKT90 | Fan Bracket to mount the 7217-FT fan at a 90 degree angle | - | $31.70 |
| GL-FTC101 | Fan Thermostat Controller Thermostat controlled 15 amp duplex outlets, UL listed, CSA certified thermostat, 50° to 90°F / 10° to 30°C temperature range, 6 ft. cord |
- | $188.62 |
| GL-7217LE3 | Fan kit w/three 75 CFM fans (door fan for use with 8404E-M29) | - | $233.33 |
| MISC. ACCESSESSORIES | |||
| GL-LE-DP | Divider panels (separates power from data) | - | $83.16 |
| GL-LE-BKT | Top Bonnet (accepts remote display) | - | $155.52 |
| GL-HDW-105-25 | Package of 25 M6 Cage Nuts with Screws 1.7 to 2.7mm Cage Nut / 12mm Screw | - | $25.34 |
| GL-HDW-105-50 | Package of 50 M6 Nuts with Screws 1.7 to 2.7mm Cage Nut / 12mm Screw | - | $40.03 |
    American Data Supply is a national data cabinet supplier and as a data cabinet distributor carries Great Lakes Data Cabinets, Great Lakes Water Cooled Cabinets, Great Lakes Data Rack Enclosures,Great Lakes Network Racks,Great Lakes Relay Racks, Great Lakes Cable Management Racks,Great Lakes Equipment Racks, and Great Lakes Rack Systems. Great Lakes Cabinets and Rack Systems are recognized around the globe as strong reliable partners in the areas of telecommunications and data communications, server network and technology, medical technology and, of course, security, and traffic control technology. The Great Lakes line of racks and data cabinets quality has been setting traditionally recognized high standards for several decades. Our standardized and customer-specific solutions are reflections of our innovative engineering know-how, which characterizes and provides the impetus for progress in these markets. Perfect solutions incorporating mechanical, electronic and thermal components qualify us as one of the global market leaders for highly developed, modular rack and enclosure systems for indoor and outdoor applications. The global presence, the innovative and aesthetic design, a mature platform of standard products and the recognized high degree of integration competence, supplemented by outstanding time-to-market results. Data Center Cabinets'products are compatible with the latest standards established by Dell, HP, IBM, Lanstar, Chatsworth. APW,Rittal,Hoffman and other server rack and data cabinet suppliers. With locations through the US, we serve all regions of the United States, Canada, Hawaii, AK and South America. Please call us for additional shipments at (866) 342-3721 |

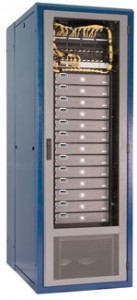

 Lake Effect Enclosure |
Lake Effect Enclosure 84”H x 30”W x 48”D (44 RMU) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
